Greenlee® 39109 Swivel 10000 lb

The Greenlee® swivels, when used with a rope connector, are intended for connecting the pull rope to the utility product in an overhead or underground application. The swivel permits rotation of the pull rope while protecting the product from twisting.

Features:

• Helps eliminate winding and tangling of rope and cable during pull
• Connects grip and pulling rope
• All stainless steel body construction
• Efficient thrust and roller bearing construction allows smooth rotation, even under full-load
• Clevis pins are "shoulder bolt" style, so load on both sides of clevis is taken on the shoulder, not on the thread
• Select the swivel with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
• 10000 underground safe working limit/6000 lb overhead load safe working limit
• Shoulder bolt style

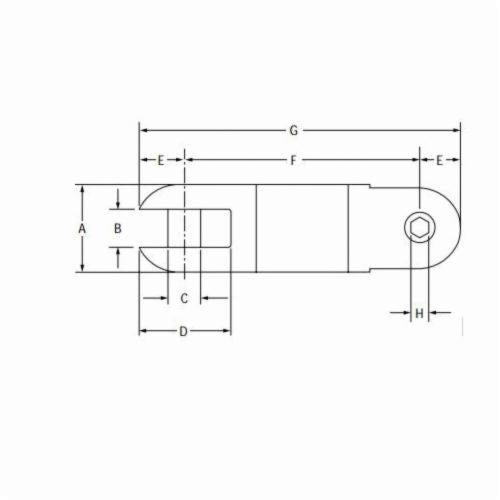

Specifications:

• Eye Inside Diameter: 5/8 in
• Eye Length: 1-23/32 in
• Eye Width: 11/16 in
• Load Capacity: 10000 lb
• Material: Stainless Steel
• Overall Length: 6 in
• Pin Type: Hex Clevis
• Width Between Eyes: 4-1/2 in
