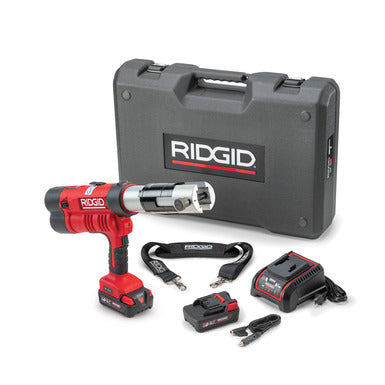

RIDGID 65468 / RP 342-XL Press Tool W/Battery (No Jaws)

The RP 342-XL is the first-ever RIDGID® press tool that works on any size and material pipe. From 2” PureFlow® to 4" ProPress® to 4" MegaPress®*, one tool can press it all. It also works with the full line of RIDGID Standard 32kN tool attachments, including fan favorites like StrutSlayr® and PressSnap™. Its compact design and versatile applications make it the tool you want for every job.

ProPress® and MegaPress® are registered trademarks of Viega GmbH & Co. KG

* The Viega Z3 actuator is required for 2 ½” to 4” carbon steel applications.

Features:

• Fast - Presses up to 4" carbon steel in one trigger pull

• Simple - QuickSwitch™ collar for standard and extended applications

• Agile - 270° head swivel for access to tight spaces

• Convenient - LED Light for low light applications

• Versatile - Compatible with all RIDGID standard and extended 32kN attachments

Specifications:

• Capacity - 1/2" to 4" for carbon steel, copper and stainless steel, 1/2" to 2" for PEX
• Head Rotation - 270° head swivel
• Hydraulic Ram Output - 7,200 lbs. (32kN)
• Weight - 10.8 lbs./4.9 kg (no battery/attachment)

• Length - 20.9" (531 mm)
• Height - 10.5" (267 mm)
• Width - 3.35" (85 mm)
• Crimp Cycle Time - Standard - ~4 seconds, Extended - ~ 9 seconds
• Lighting - LED-Light
• Service Cycle Interval - 20,000
